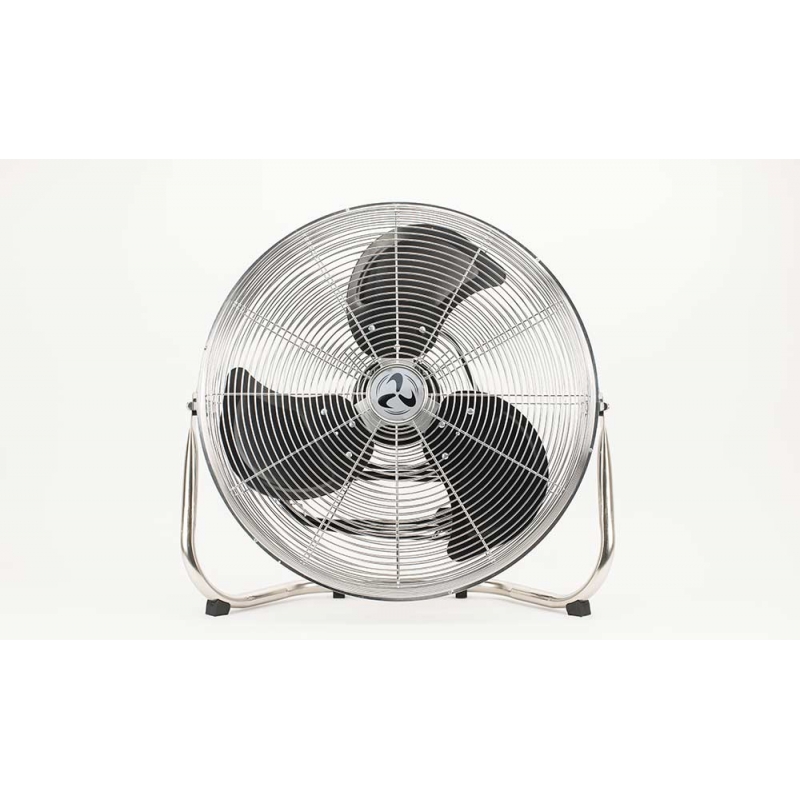

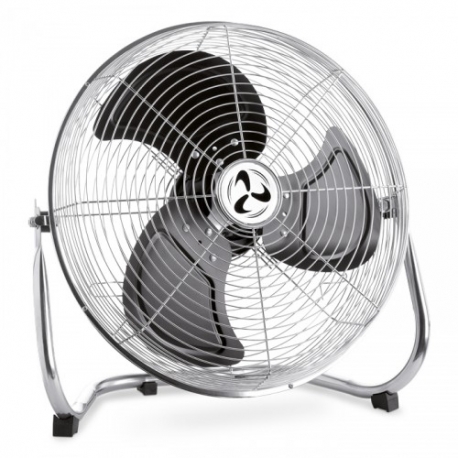

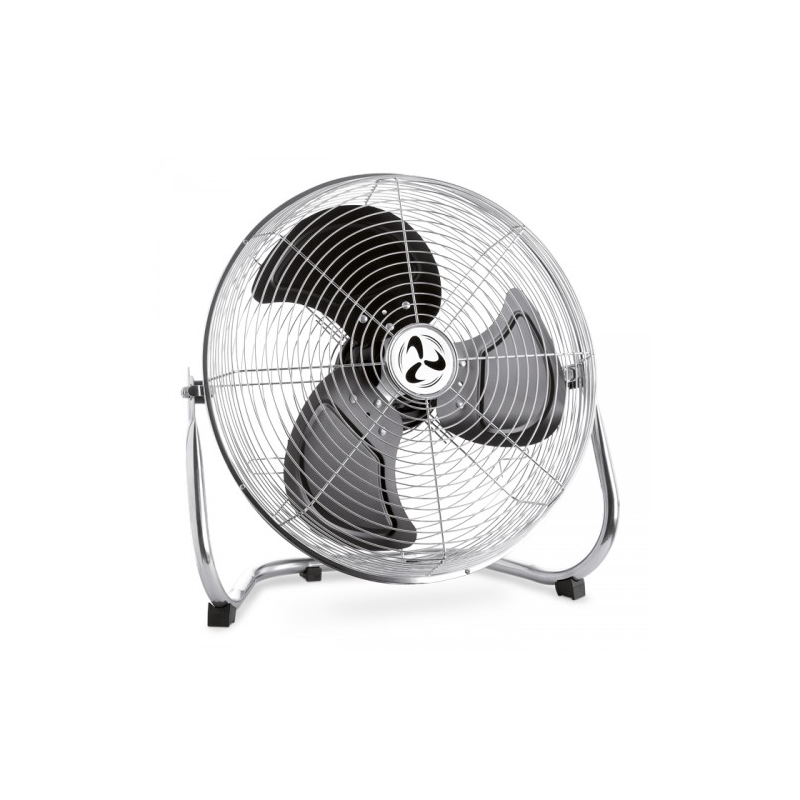

Windmaschine Speed 40 floor and wall fan by Casafan
- Voltage: 220-240 volts ~ 50 hertz
- Housing color: shiny chrome
- Wing color: black
- Max. power consumption: 110 watts
- Max. revolutions per minute: 1305
- Basket diameter: 44 cm
- Impeller diameter: 40 cm
- Total height: 47.5 cm
- Wide base: 48.5 cm
- Sound pressure Lp-3m: 40.7 dB(A)
- Sound power Lw: 62.9 dB(A)
- Air volume: 5685 m³/h
- Service behavior: 1.06 m³/min/Watt
- Weight: 4.6kg
- Degree of protection: IP20
- Vertical basket inclination adjustable

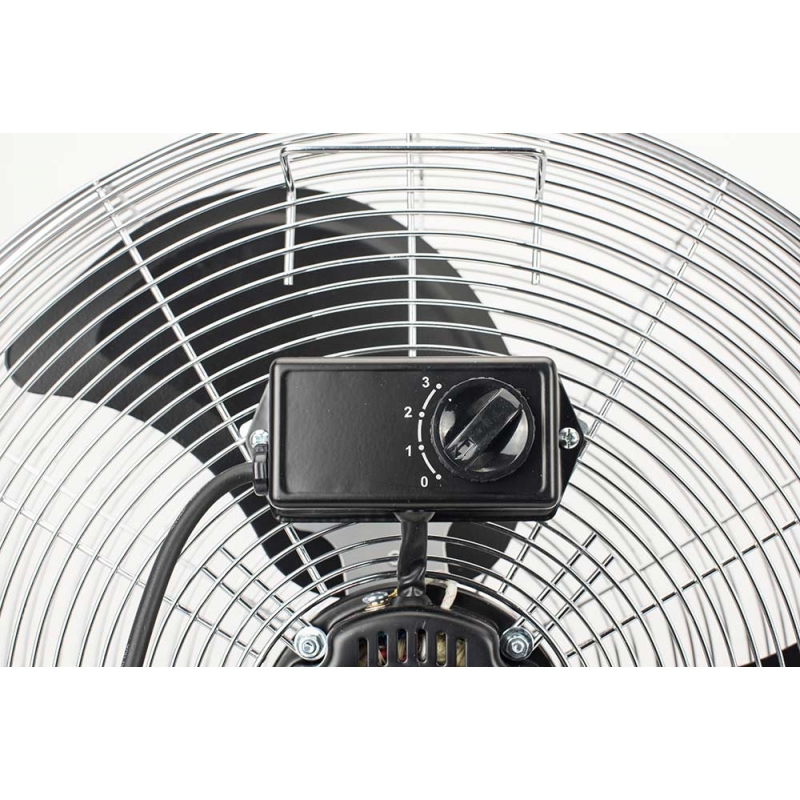

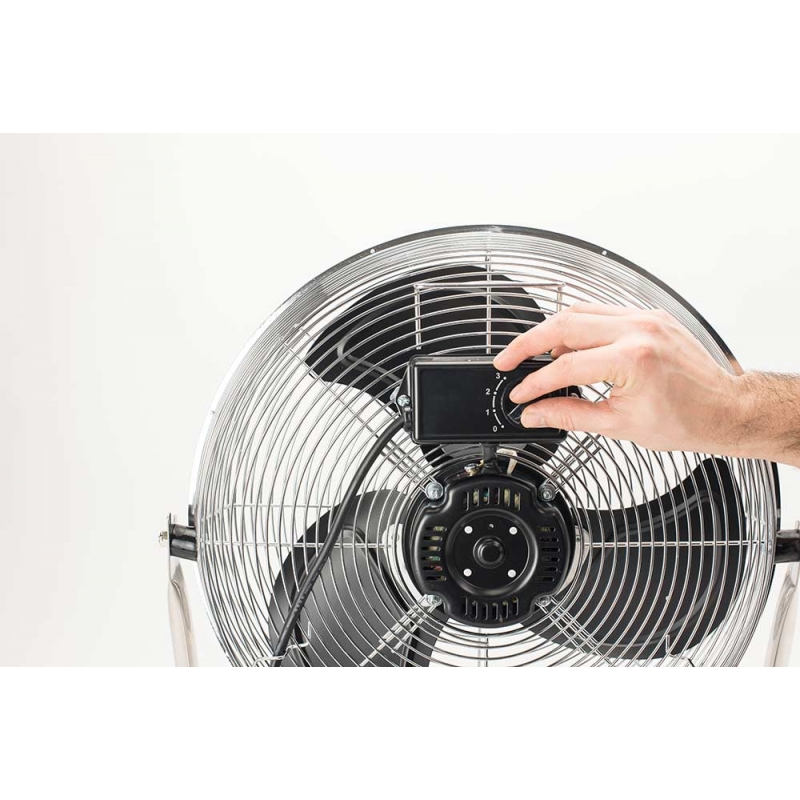

- Including rotary switch: 3 speeds / off

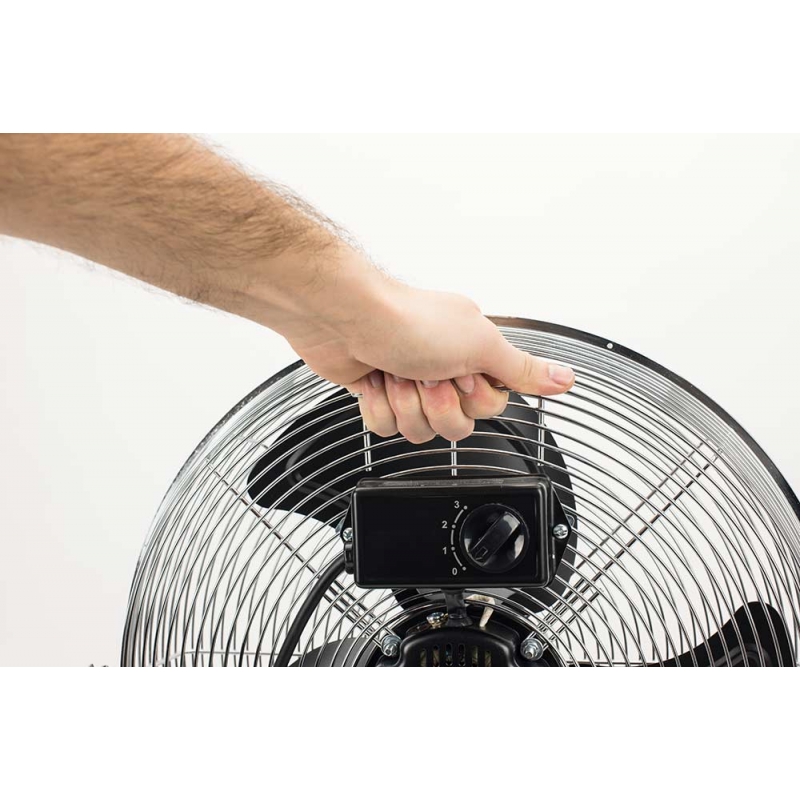

- Carrying handle and cable storage on the back
- Suitable for wall mounting and chain suspension (on site)
- Supplied with 2.5 lead H07RN-F G 3 1.0 mm² for high mechanical stress with type F Schuko plug
- Certified for commercial use according to Machinery Directive 2006/42/EC Part 1
- Ideal for use in production, warehousing and shipping
Compare products specs
Compare side by side technical specifications of up to 4 products by adding them to compare list.
Add to Quote list
Click on quote this item to add product to your quote list.
Need more information?
If you still have questions about this product click on "more information" button to send us your question.
Buying guide
Need help choosing the right product for you? Consult the Buying Guide we have prepared for you.
Size guide - Follow this guide to choose the right ceiling fan for your needs.
The most basic factor is the size of the room: depending on the square meters of your room you select the diameter of the fan, the following table shows the minimum diameter that your fan should have.
You can of course choose a larger diameter than the one suggested, but preferably not smaller or very larger than chart suggests.
Have in mind that an excessively larger than appropriate size fan may function worse in a smaller room dut to lack of space for sufficient air movement.
You can of course choose a larger diameter than the one suggested, but preferably not smaller or very larger than chart suggests.
Have in mind that an excessively larger than appropriate size fan may function worse in a smaller room dut to lack of space for sufficient air movement.
- Data sheetProduct properties
- DownloadFiles for product
- Customer reviews Owners reviews of product
- Manufacturer
Casafan
Data sheet
This product has following properties
| Diameter | 40 εκ. |
| Motor housing finish | Chrome |
| Blade colour | Black |
| Blade material | Metal |
| Speeds | 3 |
| Consumption (watt) | max. 50 |
| Outdoor use | Yes |
| IP Rating | IP21 |
| Manufacturer warranty | See product's manual |
